Description

OpenXCAP is an open source fully featured XCAP server. An XCAP server is used by SIP SIMPLE clients and servers to manage buddy lists and policy for subscriptions to presence or other type of events published using SIP protocol. OpenXCAP server works out of the box with  OpenSIPS Presence Agent.

This software is licensed according to the GNU General Public License version 2.

Background

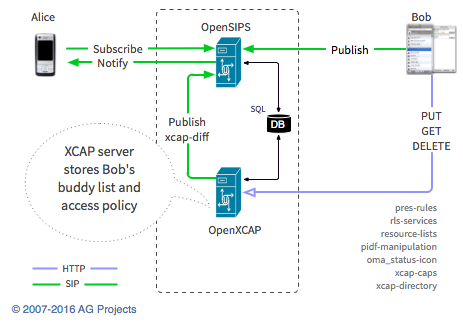

XCAP protocol allows a client to read, write, and modify application configuration data stored in XML format on a server. XCAP maps XML document sub-trees and element attributes to HTTP URIs, so that these components can be directly accessed by clients using HTTP protocol. An XCAP server is used by XCAP clients to store data like buddy lists and presence policy in combination with a SIP Presence server that supports PUBLISH, SUBSCRIBE and NOTIFY methods to provide a complete SIP SIMPLE server solution.

Features

The server is written in Python programming language and implements the following standards:

RFC4825, RFC4826, RFC4827, RFC5025, draft-ietf-simple-xcap-diff-09.txt. The server also adheres to relevant  OMA specifications related to Presence services.

  • Suport for multiple domains
  • Integrated with OpenSIPS Presence agent
  • Full and partial XML document manipulation
  • XML schema validation
  • TLS encryption and digital certificates using GnuTLS library
  • Digest or basic HTTP authentication with support for multiple realms
  • Database passwords can be stored in an encrypted format
  • IP Network based Trusted Peers

Supported XCAP applications

  • XCAP capabilities (auid = xcap-caps). Lists the capabilities of the OpenXCAP server.
  • Resource lists (auid = resource-lists). A resource lists application is any application that needs access to a list of resources, identified by a URI, to which operations, such as subscriptions, can be applied.
  • Presence rules (auid = pres-rules, org.openmobilealliance.pres-rules). A Presence Rules application is an application which uses authorization policies, also known as authorization rules, to specify what presence information can be given to which watchers, and when.
  • RLS services (auid = rls-services). A Resource List Server (RLS) services application is Session Initiation Protocol (SIP) application whereby a server receives SIP SUBSCRIBE requests for resource, and generates subscriptions towards the resource list. See the README file for more details about of the implementation.
  • PIDF manipulation (auid = pidf-manipulation). Pidf-manipulation application usage defines how XCAP is used to manipulate the contents of PIDF based presence documents.
  • XCAP directory (auid = org.openmobilealliance.xcap-directory). Lists the documents stored in the XCAP server for a given user.
  • icon (auid = oma_status-icon). Manipulate user icon for a given user and provide icon download capability from HTTP clients.
  • Dialog rules (auid = dialog-rules). Dialog Rules application is a custom application modeled after Presence rules that uses authorization policies, to specify when dialog information can be given to which watchers.
  • Watchers (auid = watchers, proprietary application). This application returns the list of watchers from OpenSIPS presence agent.

Documentation

Support

The project is supported via this wiki collaboration system by  AG Projects. To open ticket please Register first. The ticketing support system is available only for registered users. The support is provided on a best-effort basis.

For interaction between OpenXCAP and OpenSIPS you may consult the  OpenSIPS users mailing list

Credits

Authors: Mircea Amarascu, Ruud Klaver,Lucian Stanescu, Denis Bilenko, Saul Ibarra

Attachments
